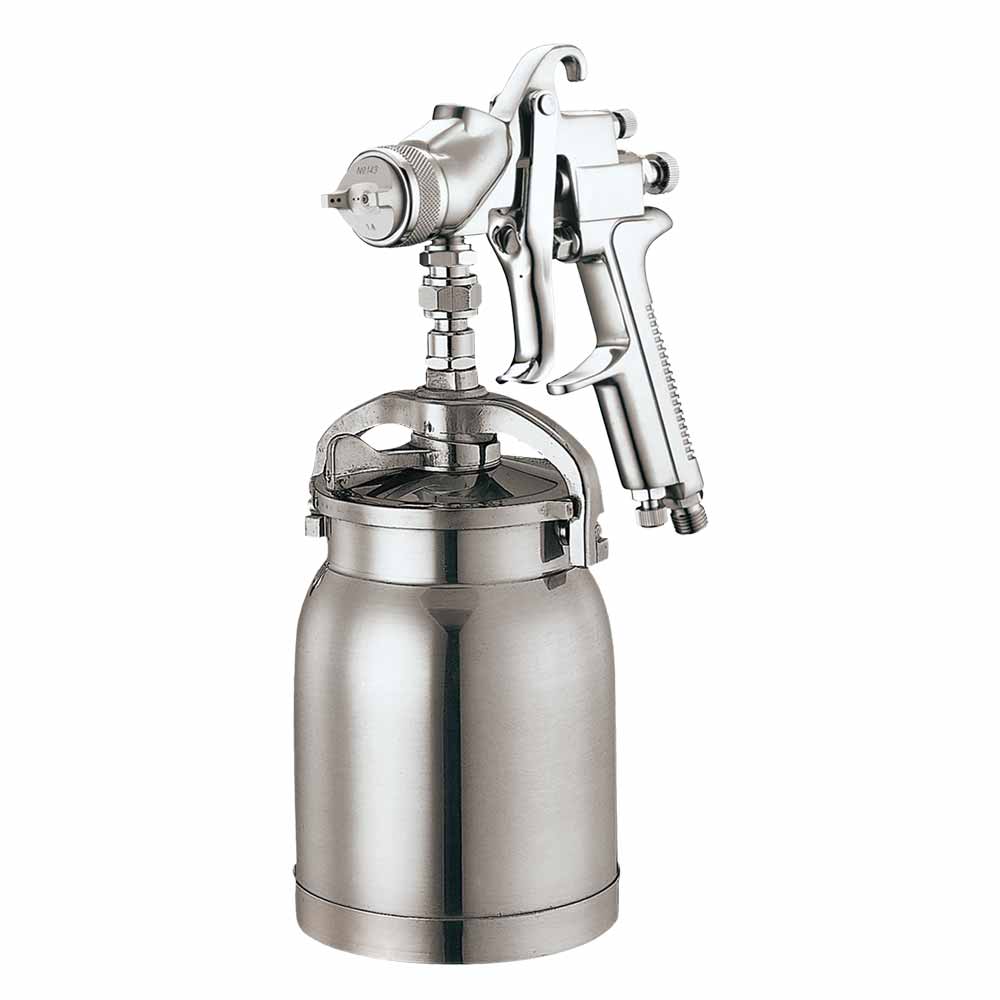

K-506S是專業用環保噴槍。噴嘴和針頭皆由精密不鏽鋼所製成，性能卓越。適用於所有工業以及噴塗應用。
配件含有：700或1000 c.c.虹吸式鋁杯、清潔刷、扳手和噴漆過濾器。
|
product specification
|
nozzle set
|
|||||
|---|---|---|---|---|---|---|
|
model
|
nozzle size
|
flow
|
Spray arc
|
Air consumption
|
Part Number
|
nozzle size
|
|
K-506S-08
|
0.8 mm
|
170ml
|
265 mm
|
200 l/min
|
SG008-506-08
|
0.8 mm
|
|
K-506S-11
|
1.1mm
|
210ml
|
265 mm
|
200 l/min
|
SG008-506-11
|
1.1mm
|
|
K-506S-14
|
1.4 mm
|
170ml
|
265 mm
|
200 l/min
|
SG008-506-14
|
1.4 mm
|
|
K-506S-18
|
1.8mm
|
190ml
|
265 mm
|
200 l/min
|
SG008-506-18
|
1.8mm
|
|
K-506S-20
|
2.0mm
|
240ml
|
265 mm
|
200 l/min
|
SG008-506-20
|
2.0mm
|
|
K-506S-25
|
2.5 mm
|
260ml
|
265 mm
|
200 l/min
|
SG008-506-25
|
2.5 mm
|
|
• 型式 : 虹吸式
• 漆料容量 : 700 or 1000 c.c. • 漆料接頭 : 1/4” or 3/8″ • Air inlet fitting: 1/4″ |
• Inlet pressure: 30~43 psi
• Net Weight: 486 gs |
 |
||||
