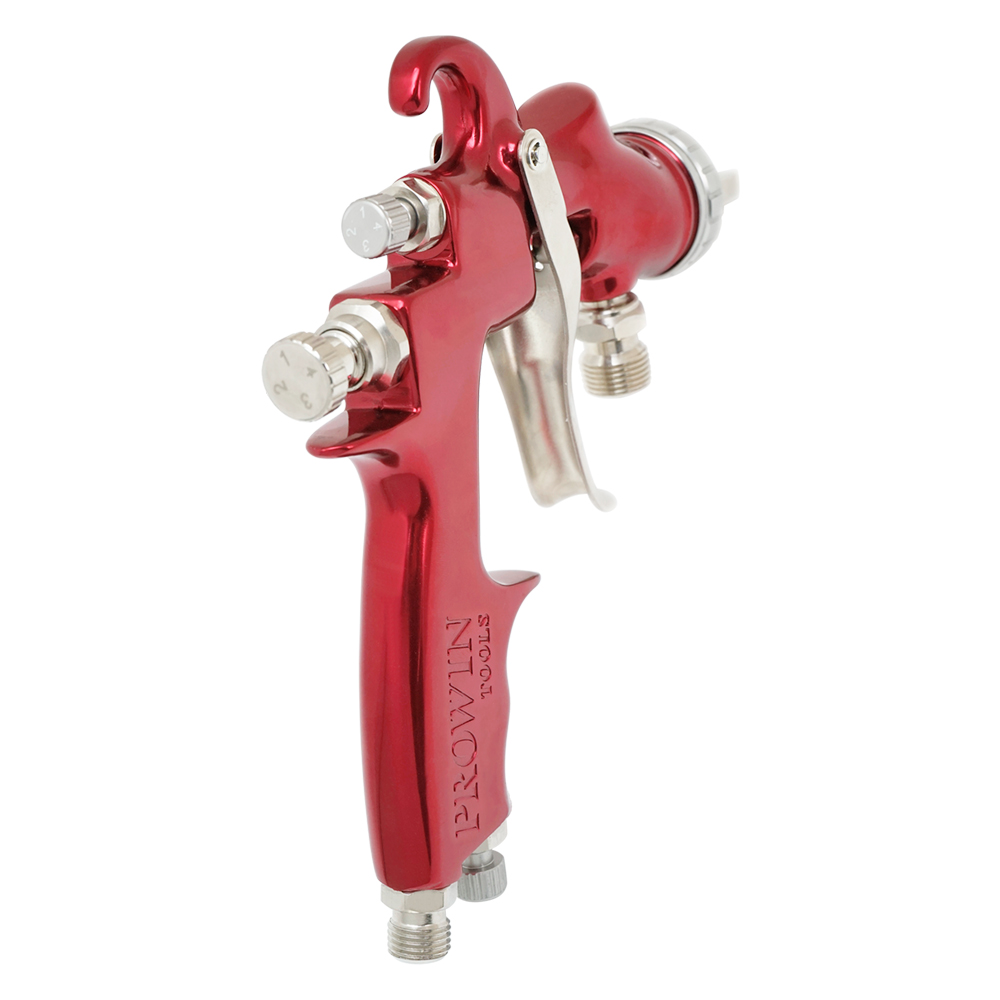

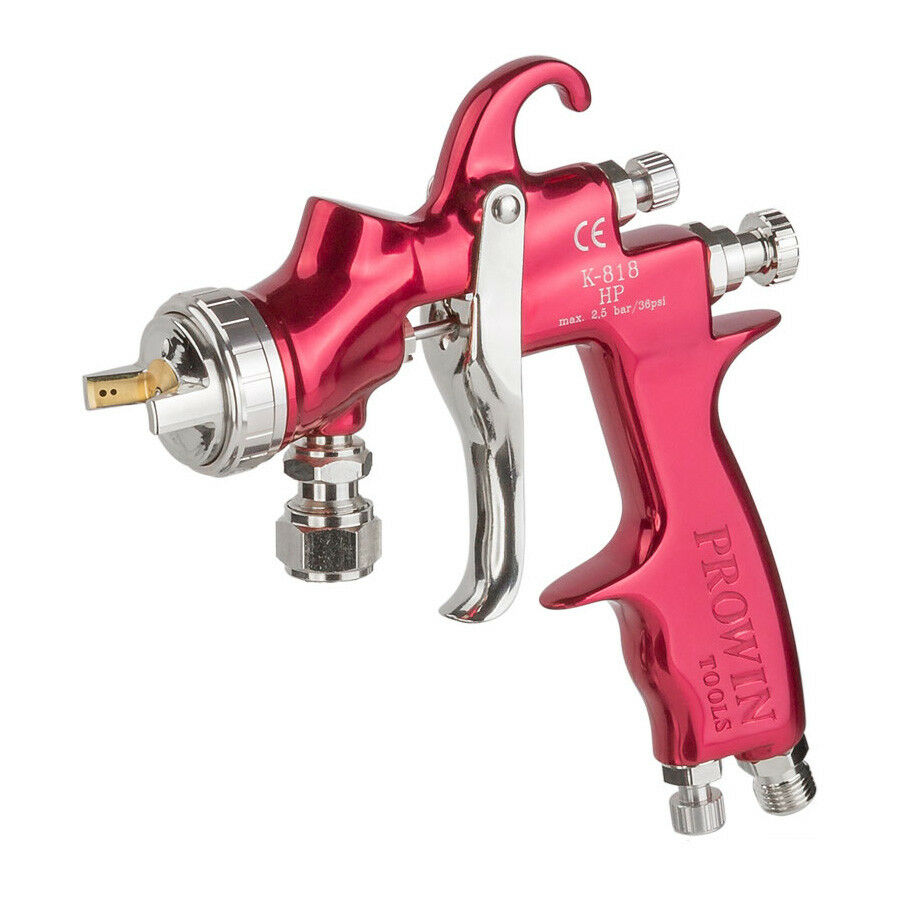

K-818P is a professional environmental protection spray gun. The nozzle and air shield allow the gun to have excellent atomization results. Suitable for all industrial as well as spraying applications.
Included accessories are: cleaning brush, wrench and paint filter.
- Gun Body - Produced by aluminum one-piece forging with high-quality anodized surface.
- Nozzle and Needle – Hardened needle made of fine stainless steel, providing perfect atomization effect and surface treatment, Nozzle 100% has been strictly manually inspected to ensure the best atomization effect, suitable for water-based paint.
- Air Hood – Made of brass for long life, the special cap design also provides excellent atomization.
- Teflon packing seal – acid and alkali resistance, long service life.
- Built-in air regulator, material flow regulator and round/oval controls.
|
product specification
|
nozzle set
|
|||||
|---|---|---|---|---|---|---|
|
model
|
nozzle size
|
flow
|
Spray arc
|
Air consumption
|
model
|
nozzle size
|
|
K-818P-10
|
1.0 mm
|
120ml
|
310 mm
|
210 l/min
|
SG008-818-10
|
1.0 mm
|
|
K-818P-12
|
1.2 mm
|
170ml
|
300 mm
|
210 l/min
|
SG008-818-12
|
1.2 mm
|
|
K-818P-13
|
1.3mm
|
200ml
|
305 mm
|
210 l/min
|
SG008-818-13
|
1.3mm
|
|
K-818P-14
|
1.4 mm
|
220ml
|
310 mm
|
210 l/min
|
SG008-818-14
|
1.4 mm
|
|
K-818P-15
|
1.5mm
|
240ml
|
315 mm
|
210 l/min
|
SG008-818-15
|
1.5mm
|
|
K-818P-16
|
1.6mm
|
260ml
|
320 mm
|
220 l/min
|
SG008-818-16
|
1.6mm
|
|
K-818P-18
|
1.8mm
|
300ml
|
330 mm
|
220 l/min
|
SG008-818-18
|
1.8mm
|
|
K-818P-20
|
2.0mm
|
340ml
|
340mm
|
220 l/min
|
SG008-818-20
|
2.0mm
|
|
K-818P-25
|
2.5 mm
|
380ml
|
350 mm
|
220 l/min
|
SG008-818-25
|
2.5 mm
|
|

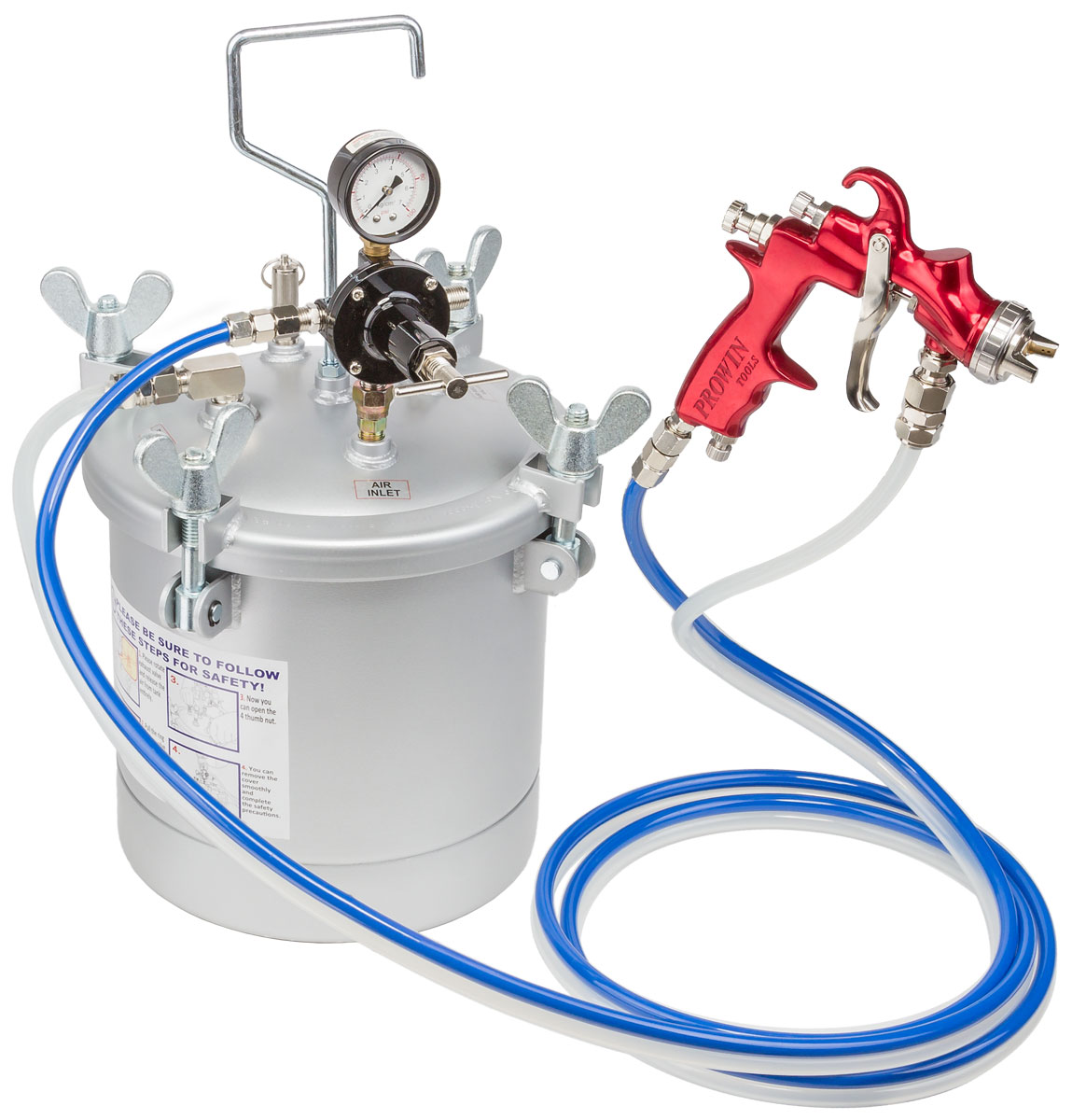

• Type: Pressure Feed
• Paint Capacity: Non • Paint Connector: 3/8″ • Air inlet fitting: 1/4″ |
• Inlet pressure: 30~43 psi
• Body net weight: 450 gs |
 |
||||
