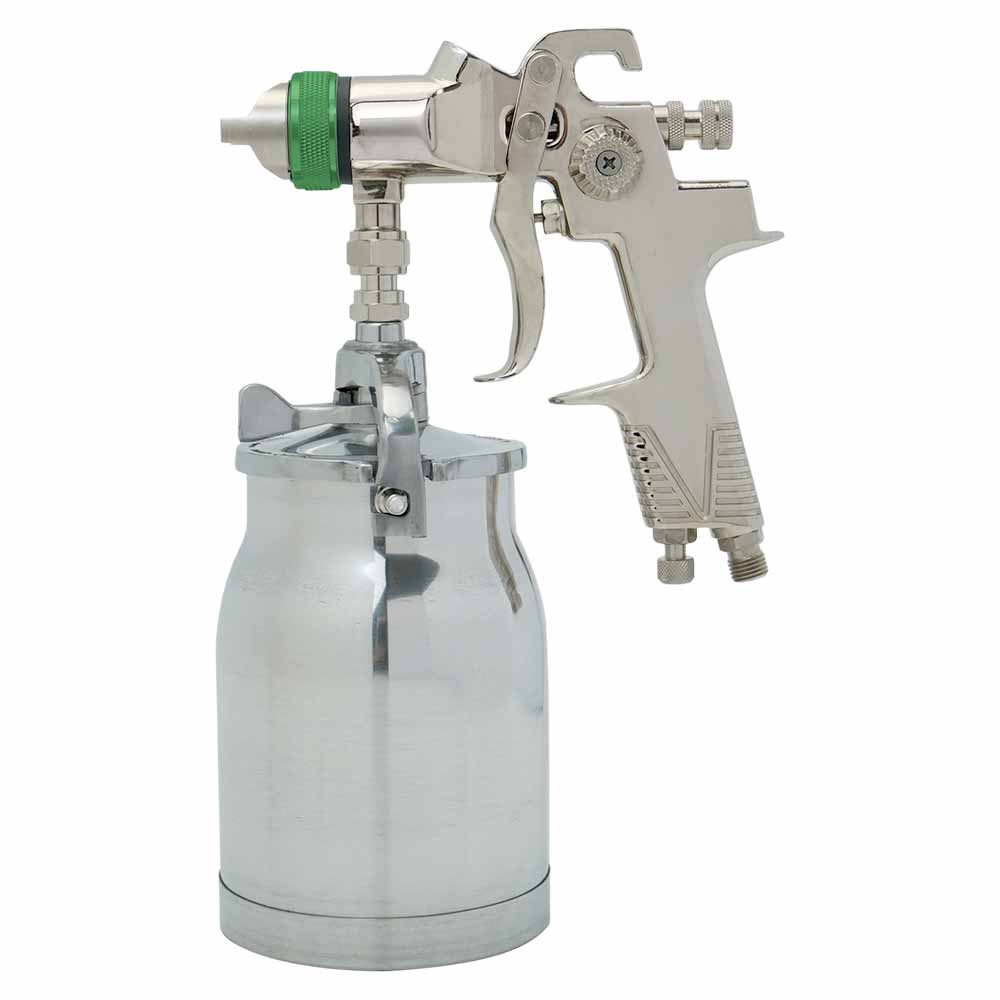

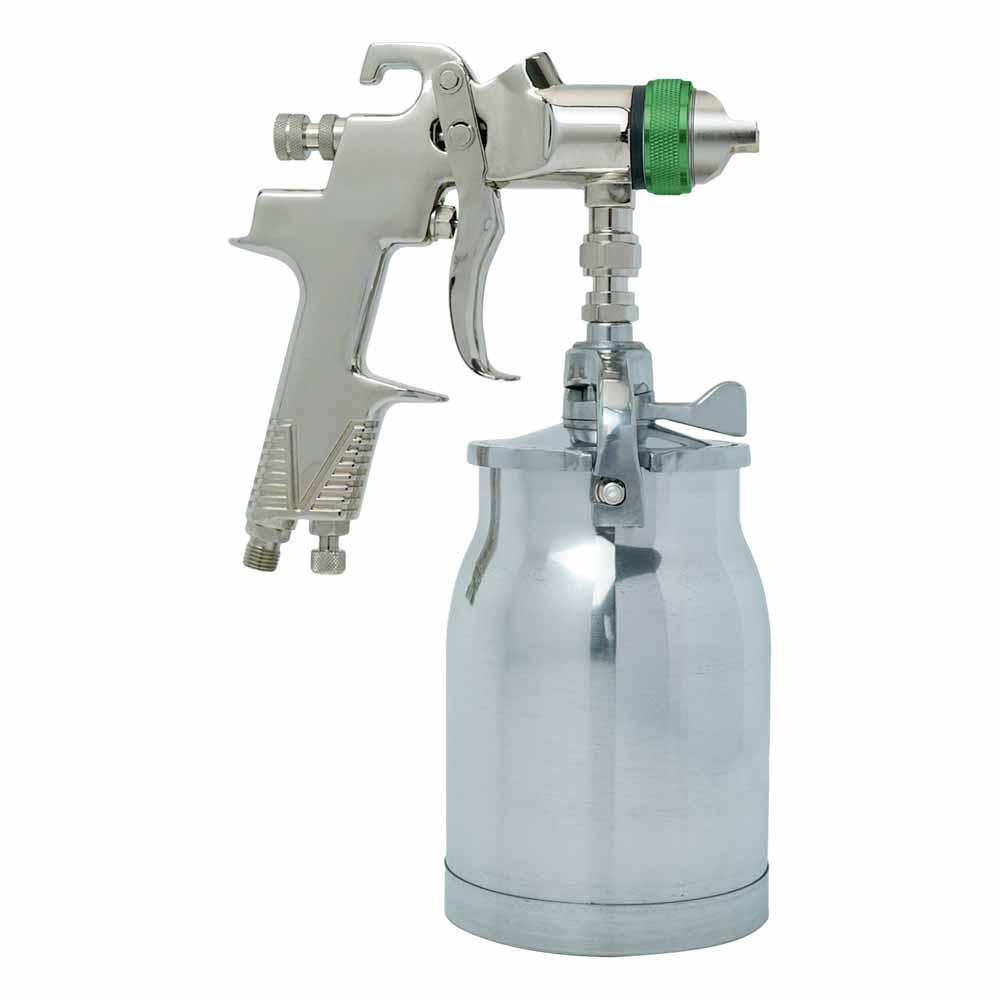

K-866S 是一款 H.V.L.P.虹吸式噴槍，適用於建築或工業用途的塗裝工作。
配備有 1,000cc 鋁製虹吸杯、扳手和清潔刷。
|
product specification
|
nozzle set
|
|||||
|---|---|---|---|---|---|---|
|
model
|
nozzle size
|
flow
|
Spray arc
|
Air consumption
|
Part Number
|
nozzle size
|
|
K-866S-13
|
1.3mm
|
130ml
|
290 mm
|
260 l/min
|
SG018-866S-13
|
1.3mm
|
|
K-866S-14
|
1.4 mm
|
140ml
|
300 mm
|
260 l/min
|
SG018-866S-14
|
1.4 mm
|
|
K-866S-15
|
1.5mm
|
165ml
|
300 mm
|
260 l/min
|
SG018-866S-15
|
1.5mm
|
|
K-866S-17
|
1.7 mm
|
185 ml
|
300 mm
|
260 l/min
|
SG018-866S-17
|
1.7 mm
|
|
K-866S-20
|
2.0mm
|
195 ml
|
310 mm
|
260 l/min
|
SG018-866S-20
|
2.0mm
|
|
K-866S-25
|
2.5 mm
|
250ml
|
330 mm
|
260 l/min
|
SG018-866S-25
|
2.5 mm
|
|
K-866S-30
|
3.0 mm
|
260ml
|
330 mm
|
260 l/min
|
SG018-866S-30
|
3.0 mm
|
|
K-866S-35
|
3.5 mm
|
270 ml
|
330 mm
|
260 l/min
|
SG018-866S-35
|
3.5 mm
|
|
• 型式 : 虹吸式
• 漆杯容量 : 1000 c.c. •漆料接頭 : 3/8″ • Intake connector : 1/4″ |
• Intake pressure : 20~28 psi
• 標準噴嘴 : 1.7 mm • body weight : 630 gs |
 |
||||
