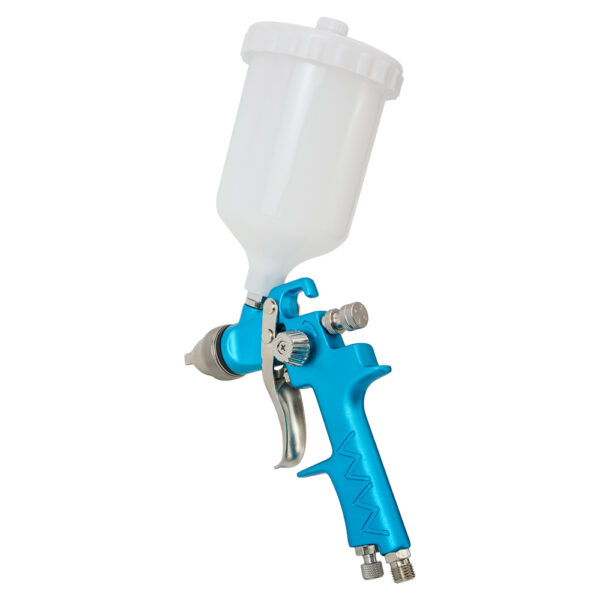

K-866P 是一款 H.V.L.P. 重力供料噴槍，霧化效果好，適用於工業用途和汽車修補漆。
It comes equipped with a 600cc gravity cup, wrench, cleaning brush and paint filter.
|
product specification
|
nozzle set
|
|||||
|---|---|---|---|---|---|---|
|
model
|
nozzle size
|
flow
|
Spray arc
|
Air consumption
|
Part Number
|
nozzle size
|
|
K-867M-13
|
1.3mm
|
135 ml
|
300 mm
|
250 l/min
|
SG018-867M-13
|
1.3mm
|
|
K-867M-14
|
1.4 mm
|
145 ml
|
300 mm
|
250 l/min
|
SG018-867M-14
|
1.4 mm
|
|
K-867M-15
|
1.5mm
|
170ml
|
310 mm
|
260 l/min
|
SG018-867M-15
|
1.5mm
|
|
K-867M-17
|
1.7 mm
|
190ml
|
310 mm
|
260 l/min
|
SG018-867M-17
|
1.7 mm
|
|
K-867M-20
|
2.0mm
|
200ml
|
320 mm
|
260 l/min
|
SG018-867M-20
|
2.0mm
|
|
K-867M-25
|
2.5 mm
|
280ml
|
330 mm
|
270 l/min
|
SG018-867M-25
|
2.5 mm
|
|
• Type: gravity
• Lacquer cup capacity: 600 cc • Paint joint M16×1.5P • Intake connector : 1/4″ |
• Intake pressure 20~28 psi • Standard nozzle : 1.4 mm • body weight : 620 gs |
 |
||||
